4.75 Tons Heating (56.98 kBtu/h)
|
||
 |
UL 60335-2-40 / UL 60335-1-40 CSA C22.2 / SGS
The Chiltrix CX50 ATWHP Has Europe's Highest Efficiency Rating!
Why does this matter here in the USA? Click for more >>>
CX50 uses the same award-winning controls technology as CX34. And, it has been optimized for heating performance while still beating every air to water heat pump in the industry (except the Chiltrix CX34) for cooling efficiency..
Anti-Corrosion
technology is used on all outdoor units to protect against salty air in coastal environments, and ensure a longer life in any environment. See complete anti-corrosion details.
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

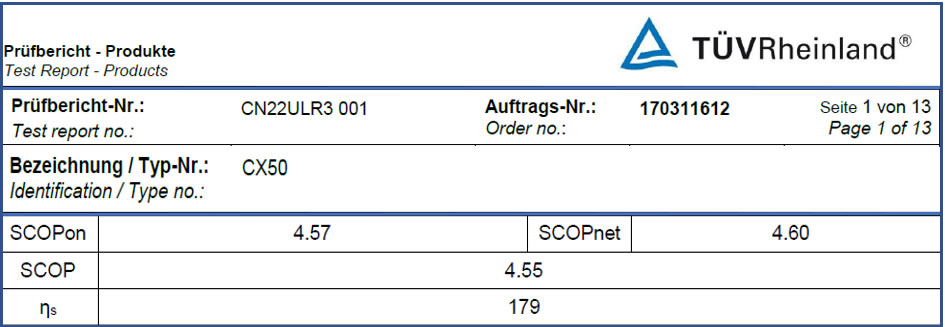

TUV Heating Performance Certificate
Certificate No. AK 50558384

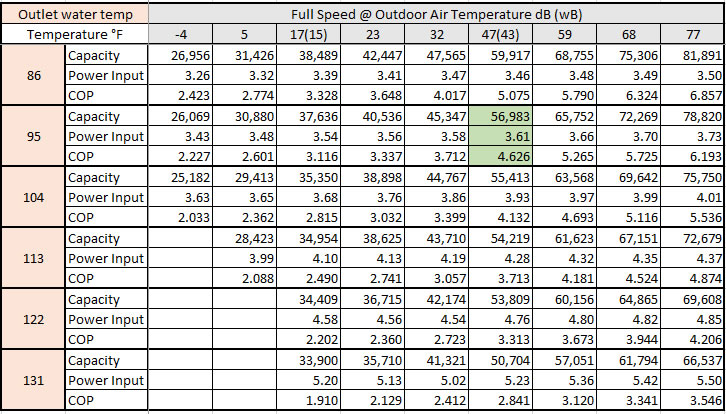

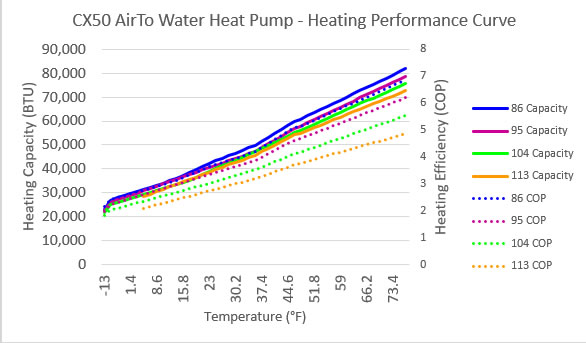

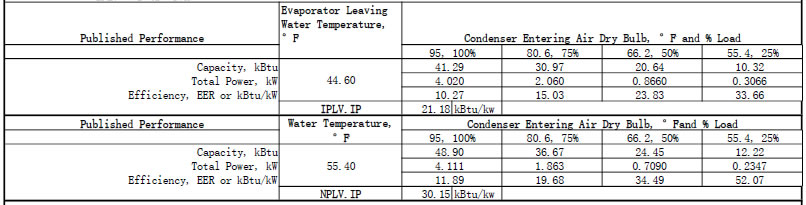

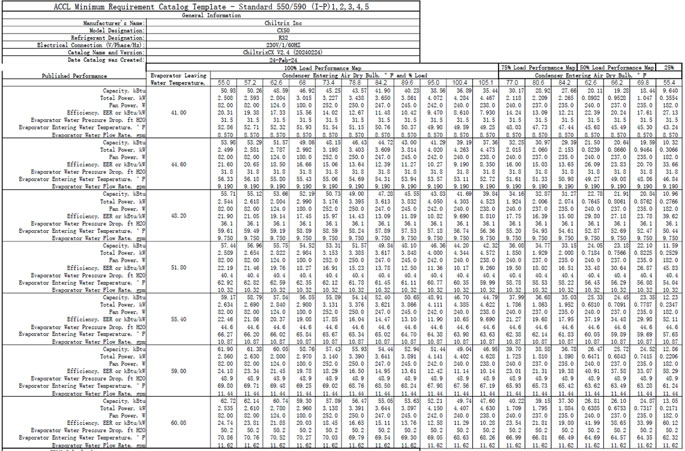

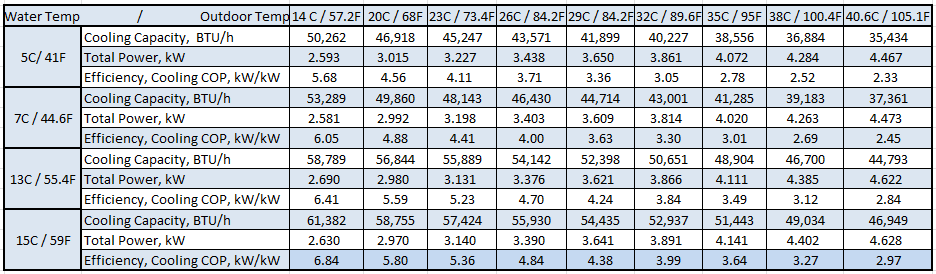

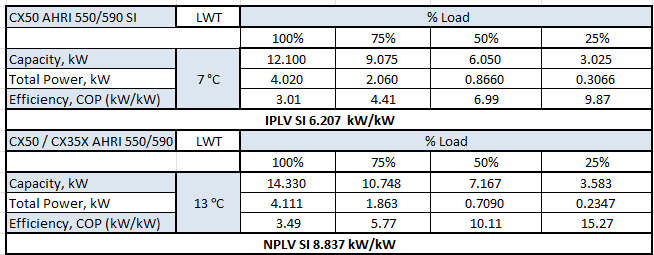

Capacity, IPLV and NPLV certified in accordance with the AHRI Air-Cooled Water-Chilling Packages Certification Program, which is based on AHRI Standard 550/590 (SI) Certified in accordance with the AHRI Air-Cooled Water-Chilling Packages Certification Program, which is based on AHRI Standard 550/590 (I-P) and AHRI Standard 551/591 (SI). Full speed cooling performance map is derived from AHRI certified data, reformatted to include IP values. Heating COP and SCOP is certified by TUV under EN14825 inclusive of EN14511-2, EN14511-3, EN50564. Certain kW/kW values (Si, COP) are converted to EER values (IP, BTUh/W) using the standard conversion factor of 3.412 for convenience.
Download CX50 AHRI Certificate (Ref # 208124453)
See additional technical and product details here
CEC Certified
California Energy Commission
Anti-Corrosion technology is used on all outdoor units to protect against salty air in coastal environments, and ensure a longer life in any environment. See complete anti-corrosion details.
Specifications subject to change without notice. Images are representative only.
|
Ductless Room Fan Coil Units
Mount on Wall, Floor, or Ceiling. Four sizes from 1/4 to to 1 ton.
 |
 |
 |
For Ducted Systems: Chiltrix is compatible with most standard hydronic air handlers and offers 4 AHUs sized up to 5 tons.
Radiant Heating
Use your Chiltrix Air To Water Heat Pump with a in-floor radiant heating system. Also, radiant cooling.
 |
|---|
Domestic Hot Water With Air To Water Heat Pump
Let the Chiltrix unit perform your water heating and get up to 70% annual water heating savings.
 |
|---|
AHRI PERFORMANCE AWARD
5 Consecutive 3-Year Awards
AHRI 2018-2020
3-Year Performance Award
AHRI 2019-2021
3-Year performance Award
AHRI 2020-2022
3-Year Performance Award
AHRI 2021-2023
3-Year Performance Award
AHRI
2022-2024
3-Year Performance Award
AHRI 2023-2025
